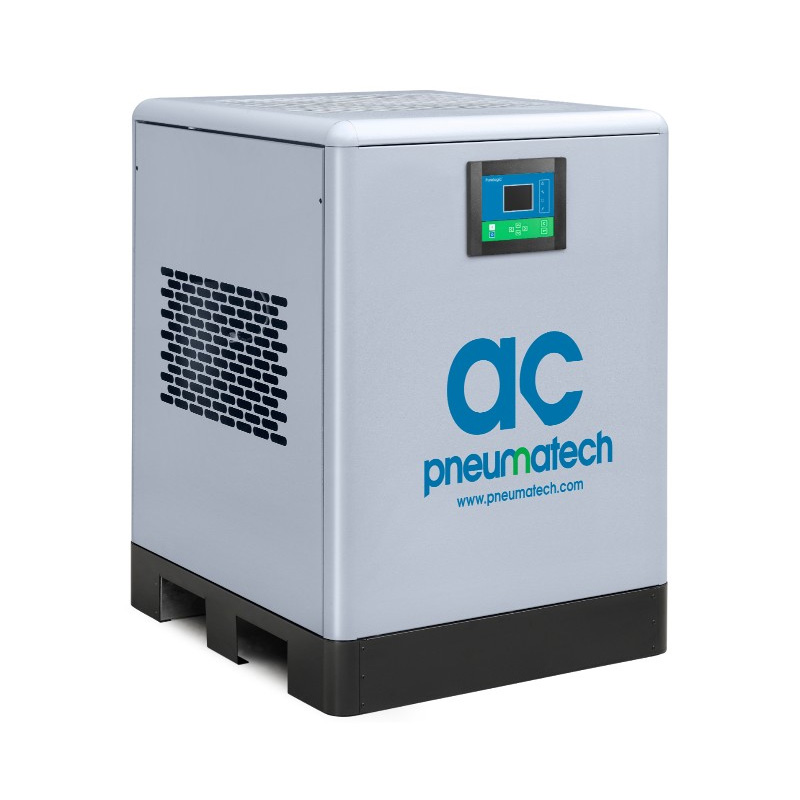

Pneumatech AC Series - Cycling Dryers

Pneumatech AC Series
Ask a Question Download Brochure
  • Overview

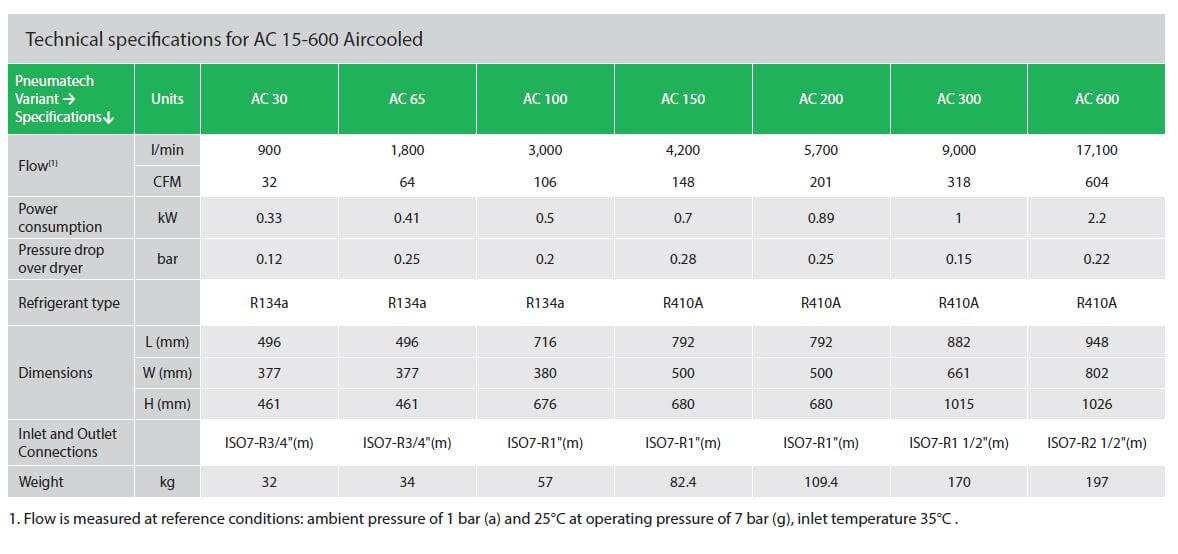

  • Specifications

Pneumatech’s AC range offers premium refrigeration drying technology at the lowest operational costs.


All AC dryers are equipped with our proprietary energy saving algorithm, which adapts the energy consumption to the real load by continuously monitoring the ambient temperature and the pressure dewpoint. In this way, the risk of downstream corrosion is reduced to zero at all times. When there is less cooling needed, the refrigerant compressor stops and power consumption is significantly reduced, with savings up to 50%.

AC250-600 dryers are also equipped with a flow switch which detects whether there is flow going through the dryer; and shuts down the refrigerant compressor when there is no flow

(even if the energy saving algorithm would not be activated).
To make these energy saving functionalities work, the AC range makes use of advanced controllers, which communicate through voltage-free contacts (for AC15-200) or industrial protocols like Modbus, Profibus or Ethernet/IP (for AC250-600).

Premium energy efficiency is also guaranteed thanks to low pressure drops over the heat exchangers, zero-loss drains and our winning combination: rotary compressors and R410A refrigerant on AC125-600. This combination is up to 30% more energy efficient, requires 19% less refrigerant gas and is 100% compliant with European regulation EU No 517 / 2014.






What makes Purelogic Controller unique?

An easy to use controller with energy saving algorithm, dewpoint or relative humidity display, freeze protection, high humidity alarm and ambient temperature offset.




Control and Monitor Your Dryer


The Purelogic™ is the ideal complement to your refrigerated dryer. This state-of-the-art control solution will provide optimal control and monitoring of your machines, increased reliability and reduced energy use.

• Easy to use – Purelogic™ incorporates a 3.5” high-definition color display with a multilingual user interface, clear icon indications and Ethernet connectivity.
• Control & monitoring – Purelogic™ displays & controls all parameters to ensure reliable operation of your desiccant dryer.
• Reliable – Heatless backup mode and choice for auto restart after power failure.
• Safeguards production – Offers a number of alarms that gives the customer the information needed for safe operations


Remote start/stop

Web interface, read only status

Integral timers


User adjustable PDP setting (requires DPD package)

Auto restart after voltage failure

Event history

Service reminders

Run/stop schedule timer

Password security
settings

Many languages to choose from



Features

Purelogic Controller

An easy to use controller with energy saving algorithm, dewpoint or relative humidity display, freeze protection, high humidity alarm and ambient temperature offset.



Premium energy efficiency

Our patented energy-savings algorithm starts and stops the dryer to save energy while keeping the relative humidity of the compressed air below 50% to prevent the formation of liquid water.



Zero-loss drain

Pneumatech's zero-loss drains save you money by preventing the loss of valuable compressed air associated with other types of drains.



Superior Reliability

Guaranteed drying performance in wide range of temperature conditions. Rotary refrigerant compressors: limited mechanical load and low vibrations (for AC125-2100). Refrigeration cycle optimized in all conditions thanks to automatic expansion valve & electronic hot gas bypass valve (for AC650-2100).


Easy installation & maintenance

Low cost Pipe connections on top. Long service intervals. Easy access to key components.



Check out this video of Pneumatech's AC Dryer Series
