Pneumatech AD Series - Non-Cycling Dryers

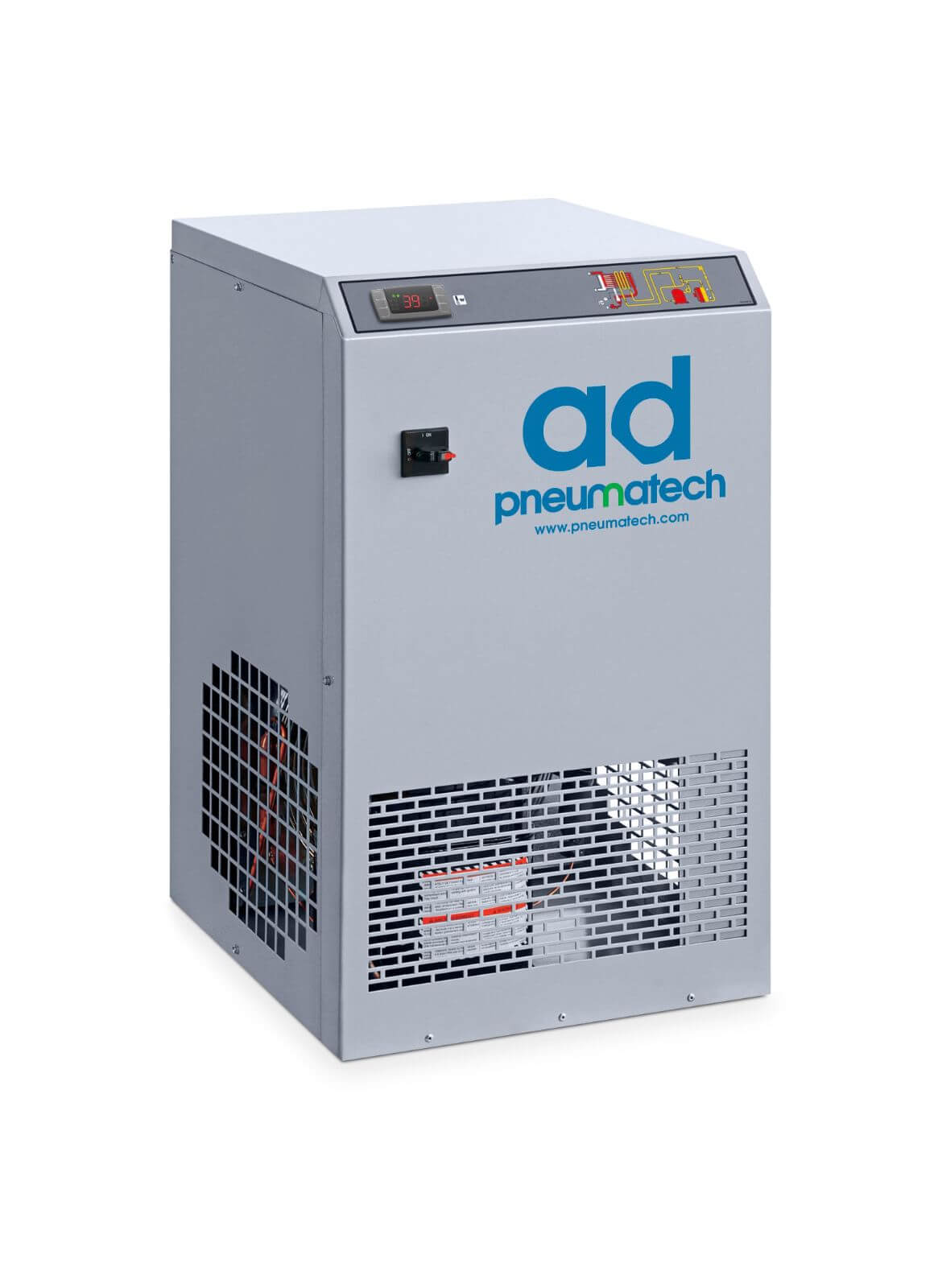

Pneumatech AD Series
Ask a Question Download Brochure
  • Overview

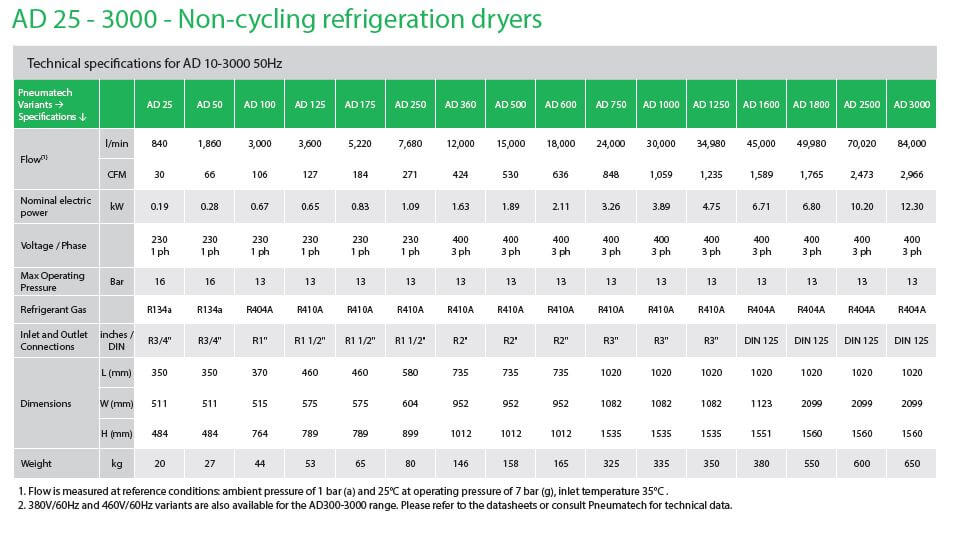

  • Specifications

Pneumatech offers a reliable economic solution for removing moisture from your compressed air system!

Pneumatech’s AD 10-3000 non-cycling refrigeration dryers are designed to protect your compressed air system by lowering the presence of moisture in the compressed air. With a stable dew point as low as 3°C these dryers provide a highly efficient and reliable solution for your drying needs. Thanks to the new controller with digital display, real time PDP monitoring is possible. The zero-loss electronic drains avoid compressed air losses. The well-designed heat exchangers ensure maximum cooling efficiency, making the AD dryers a genuine air drying solution in industrial applications.

The AD125-1250 range is equipped with the winning combination: rotary compressors and R410A refrigerant. This combination is up to 30% more energy efficient, requires 19% less refrigerant gas and is 100% compliant with European regulation EU No 517 / 2014, hereby significantly reducing the ecological footprint of these dryers. Rotary compressors are moreover very reliable thanks to the low vibration levels and limited mechanical load. R410A guarantees stable evaporation, which makes the pressure dew point of 3°C possible.





Features

Low Pressure Drop

Pneumatech uses quality heat exchangers with integrated moisture separators to prevent pressure losses in the system.



Energy Savings

All Pneumatech refrigerated dryers come with standard zero-loss drains that save you money by preventing the loss of valuable compressed air associated with other types of drains.



Superior Reliability

AD dryers utilize a hot gas bypass valve to prevent the ice from forming in the dryer during periods of low flow.



Rotary compressors and R410A refrigerant: the winning combination

The AD125-1250 range is equipped with rotary compressors and R410A refrigerant. This combination is up to 30% more energy efficient, requires 19% less refrigerant gas and is 100% compliant with European regulation EU No 517/2014.



Connectivity

Remote alarms keep you informed of service intervals and potential problems while the remote start and stop feature opens a whole new list of possibilities to control the dryer.



Easy plug-and-play installation

Check out this video of Pneumatech's AD Dryer Series
