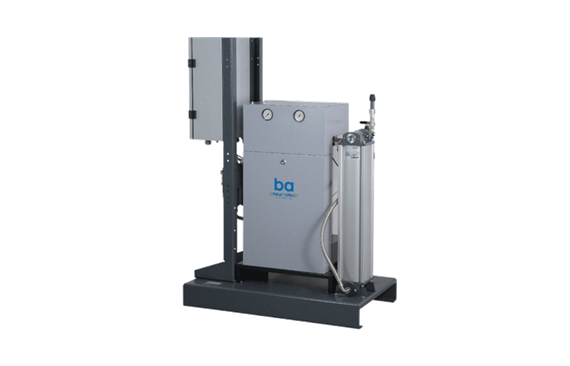

Pneumatech BA 15-310 HE – Breathing Air Purifier Dryers

BA 15-310 HE
Ask a Question Ask a Question Download Brochure Download Brochure
  • Overview
  • Specifications

The Pneumatech solution for Industrial Breathing Air applications, build to exceed standards.


The Breathing Air Dryer range assures safe working environment in a wide range of applications. Built to exceed standards, Breathing Air Dryers provide certified breathing air, even in situations with polluted intake air to ensure personnel safety at all times.

The compressed air quality is of vital importance in many applications even more so in breathing air applications. The applications, such as short-blasting, tank cleaning, tunneling, spray painting and many more require breathing air that is free from contaminants that may be present in the compressed air fed breathing air systems. These contaminants are present in the feed air in the form of fumes, oil, vapors, gases, solid particles and microorganisms. Pneumatech’ s breathing air purifiers offers guaranteed protection against such contaminants complying with International breathing Air standards.

The BA HE range assures safe working environment in a wide range of applications. Built to exceed standards, BA HE purifiers provide certified breathing air, even in situations with polluted intake air to ensure personnel safety at all times. The seven-filtration stages of the BA HE have been carefully designed to make sure the air quality at the outlet complies with EN12021 and European Pharmacopeia. Specially engineered valve manifolds includes the pilot air controlled 3/2 valves with reliable and fast switching helps to reduce the pressure drop to a minimum. This does not only result in a low-pressure drop over the dryer, but also ensures maximum purge air expansion during regeneration. That lowers the purge air consumption drastically. The gas sensors are available as an option to optimize the system further. The possibility to connect the signals to the PureLogic Controller optimal control and monitoring.



Features

Compliance with stringent international standards

  • EN12021 & European Pharmacopeia
  • OSHA Grade D, NFPA-99, CSA Z180.1-00, CGA G7.1-1997
  • BS 4275, ISO 14971, OHSAS 180




Special 7-stage filtration process offered unparalleled compressed air purity

  • Water Separator – For liquid water
  • Fine Filter – For Oil and Water aerosols
  • Super Fine Filter - For Oil and Water aerosols
  • Adsorption Dryer- For Water vapour and CO2
  • Activated Carbon – For Gaseous impurities
  • Catalyst – For CO oxidation to CO2
  • Bacteria Filter – For Bacteria & dust particles

Low noise levels




High quality filters



Compact and easy to connect design




Check out this video of Pneumatech's BA Dryer Series
