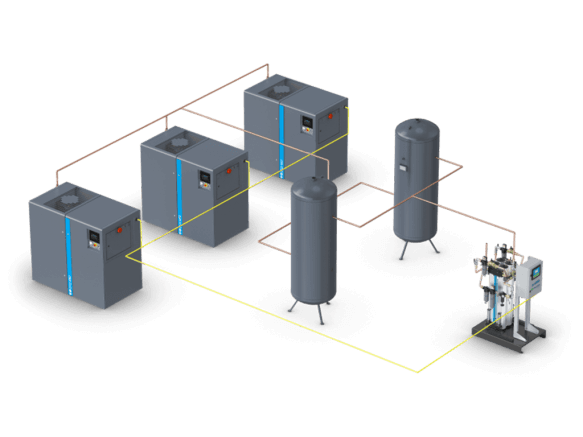

Here at Ash Air we offer you the complete solution for medical gas generation. Our medical air system offers you ultra clean medical air that is required for medical and surgical applications, while our medical vacuum system is intended to provide a continuous supply of medical vacuum to a medical gas pipeline system in healthcare facilities.
We provide ceiling service solutions for maximum flexibility, with our pendant systems providing you a
solution for carrying critical services such as medical gas terminal units and electrical circuitry. We also offer medical gas terminal
units, which provide a safe means of supplying medical equipment with medical gases from the central gas supply system. Get in touch with
the team at Ash Air today and see how we can provide medical gas solutions for your New Zealand business.
Designed to safely remove exhaled anaesthetic agents from an operating department to prevent contamination.

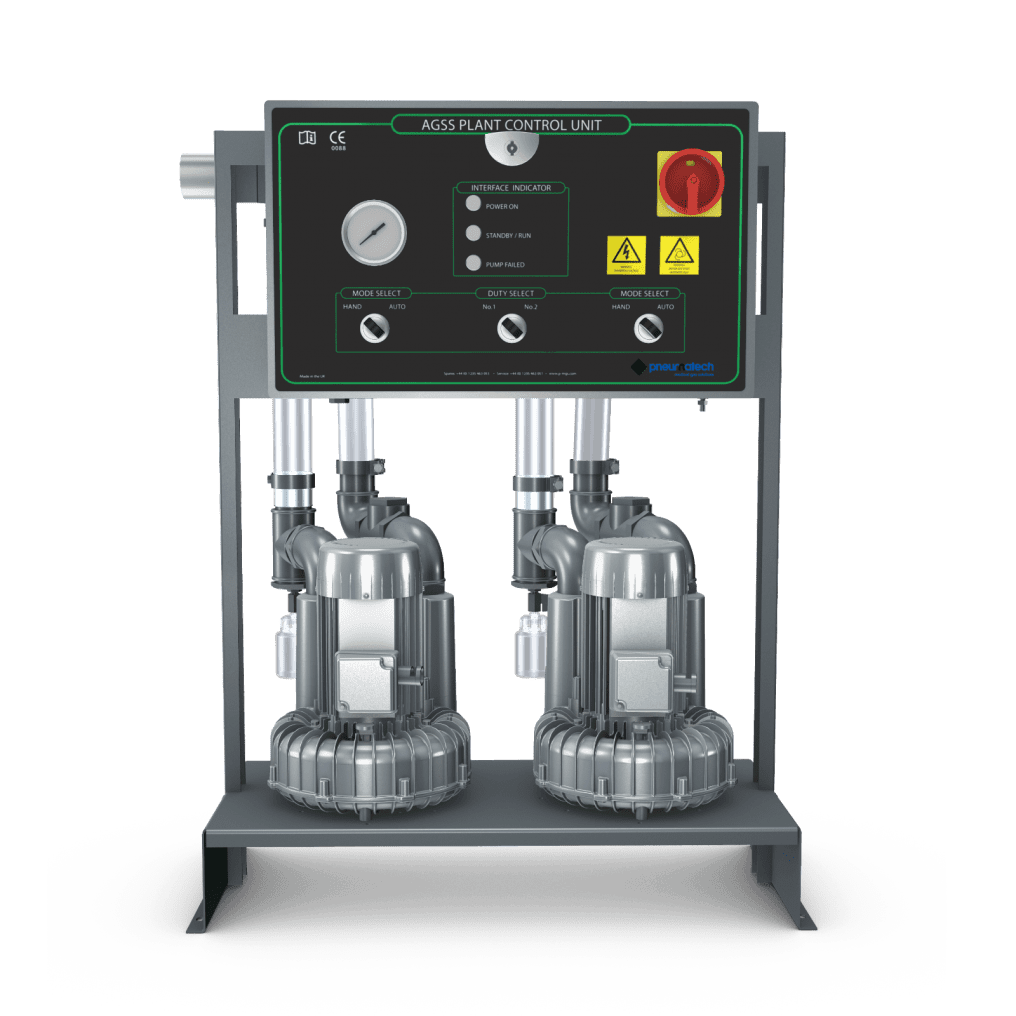

The Anaesthetic Gas Scavenging System (AGSS) is an active system which removes anaesthetic gas mixtures from operating rooms and any other areas fitted with nitrous oxide terminal units. At the core of every AGS system is a side channel blower chosen because it generates a higher flow per unit energy consumed than alternatives. This higher energy efficiency guarantees you will benefit from lower utility bills for years to come.
Most economically efficient way to exhaust anaesthetic gas from your operating department. No needs to invest in oversized air plant in order to drive venture systems.
Easy to install
Supplied pre-piped, with all required cables and instructions to do fast and simple on-site assembly.
Our manifold provides continuous and uninterrupted gas flow to your facility from high pressure cylinders
Our manifold can supply up to 1,750 l/min at 4 bar. Our pressure drop remains within the limits of EN ISO 10524-1 and does not exceed 10% ensuring gas supply even in peak demand.
Controlled costs Control your costs by: saving expensive gas with every cylinders changeover, giving better control on consumption and reducing installation and service costs.

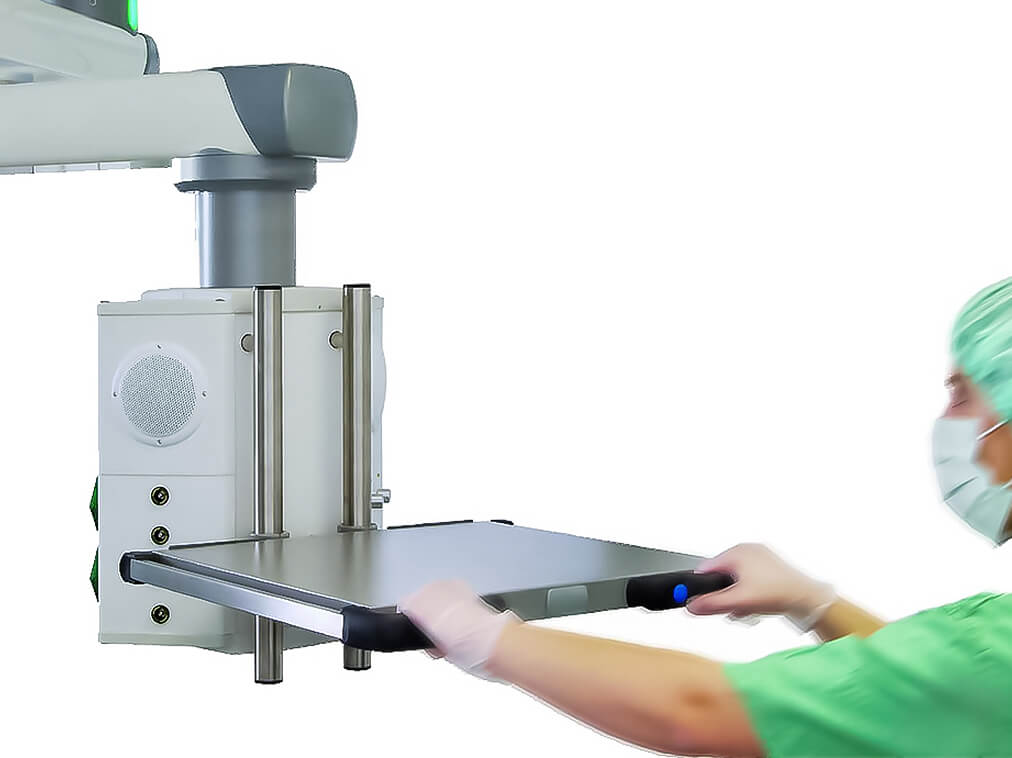

Our pendants provide you a solution for carrying critical services such as medical gas terminal units and electrical circuitry.
Bespoke design offering
We offer an array of arm lengths, ranging from 600mm to 1200mm and can be supplied as solo or dual arm arrangements for maximum flexibility.
Heavy duty arms provide 330° rotation, whilst Standard duty arms and Rotation and service heads provide 340° rotation.
Multi-movement Arm Pendants
Our articulated arm pendant systems provide large carrying capacity for services such as medical gas, power supplies and video imaging. We provide multi movement arms for operating theatres, providing both lateral and cantilever movement. This enables critical services to be placed as close to the patient as possible. Systems are tested and verified within our factory and come fully certified for complete peace of mind.
Rigid and Retractable Pendants
Both rigid and retractable models are provided to a specific length suitable to provide 2,000mm underneath clearance for safety of the user. Rigid units are of fixed length whereas retractable units provides 300mm of vertical movement. Retractable columns are operated by the easy to use pneumatic hand controller, positioned on the bottom of the column.
Our terminal units provide a safe means of supplying medical equipment with medical gases from the central gas supply system.
All of our gas outlets undergo a strict pressure and leak tests to ensure the safety of our products.
Smart look and feel
Both the East SP and Zeus SP are enclosed in a white ABS decorative mounting box. The fascia have rounded corners to avoid possibility of injury
Clear Gas indication
Our terminal units contain clear gas indication, reducing the risk of connecting a socket assembly of one gas to terminal block to another.

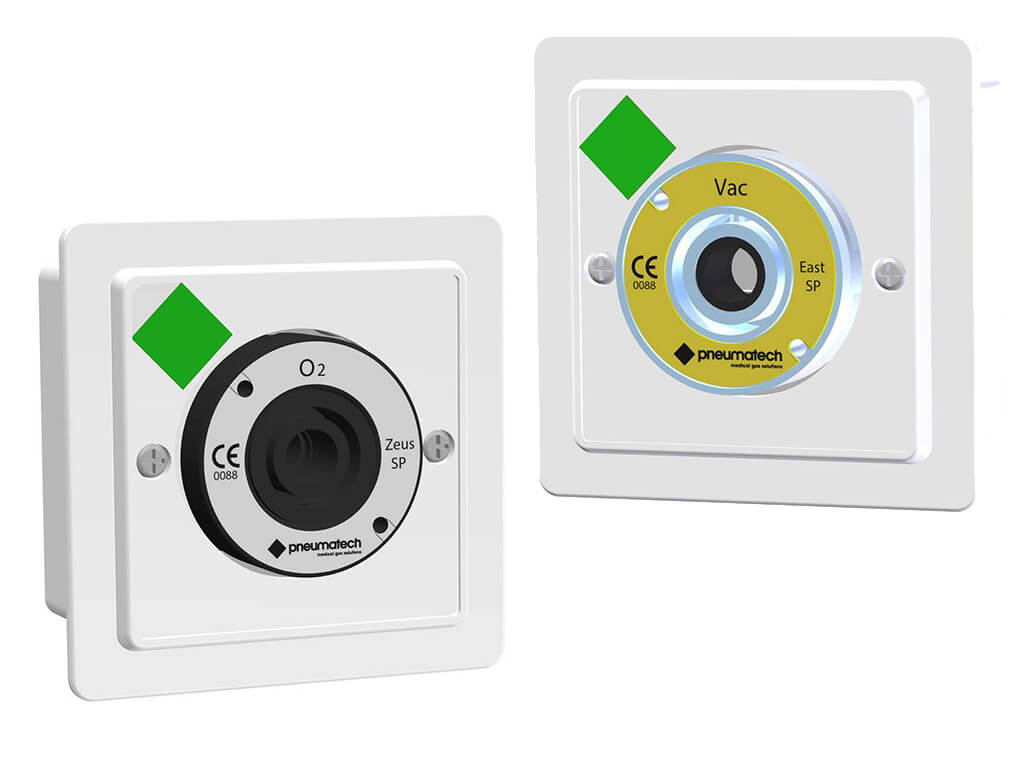

East SP and Zeus SP Terminal Units
The East SP terminal unit has an all metal construction, offering superior strength, wear resistance and longevity. A full complement of gas specific indexes is available including oxygen, nitrous oxide, O2/N2O, medical air, surgical air, vacuum, AGSS/WAGD, nitrogen and carbon dioxide.
Our Zeus SP terminal units benefit from precision moulded second fix components, delivering a perfect tactile and leak free connection year

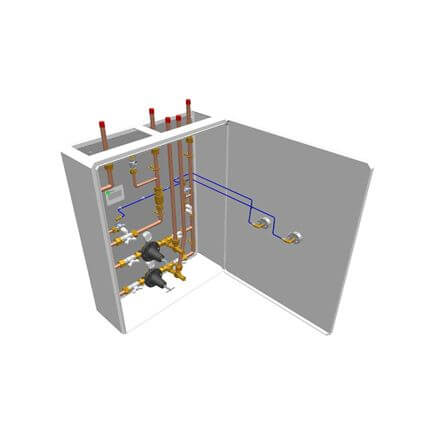

Vacuum Insulated Evaporator Control Panels are available in a duplex configuration, with one standby and one duty regulator set.
Our VIE Control Panel is designed to accept a supply of gaseous oxygen from the VIE at 10.5 bar or from the standby manifold at 8.5 bar and to reduce the pressure to a nominal 4.2 bar pipeline distribution system pressure.
Reliable and safe All components are degreased for oxygen use to avoid any fire risks. Regulators are of the non-relieving type and are rated up to 28 bar.
Continuous monitoring The VIE Control Panels are fitted with pressure switches to continuously monitor the inlet and line pressure.
