Pneumatech PB 700-6350 HE Blower Purge / Zero Purge Adsorption Dryers | 1188-10800 m3/hr

PB dryers are for customers who focus on energy efficiency and low lifecycle costs, while maintaining the highest standards in air purity.

PB blower purge dryers use heated blower purge air to remove moisture from the desiccant material and have therefore no purge loss during regeneration.

PB Zero Purge dryers have the absolute lowest lifecycle costs, by eliminating purge losses during regeneration and cooling.

PB dryers are for customers who focus on energy efficiency and low lifecycle costs, while maintaining the highest standards in air purity. PB dryers use heated blower purge air to remove moisture from the desiccant material and have therefore no purge loss during regeneration. The Zero Purge variants reduce life cycle cost even further by also eliminating purge loss during cooling. PB 210-635 HE adsorption dryers are capable of
drying air to a PDP of -40°C/-40°F as standard and -70°C/-94°F as option for purge units.

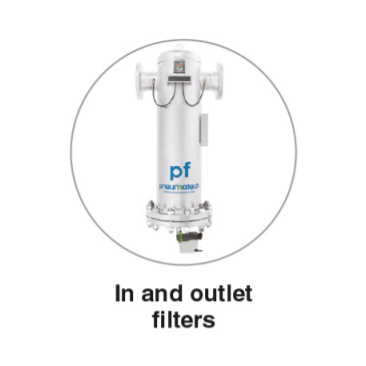

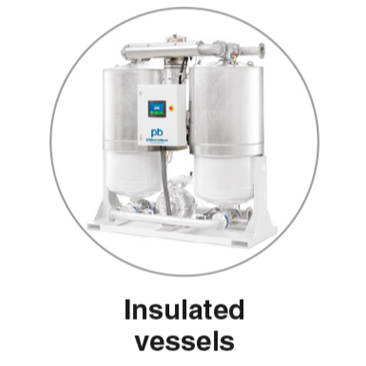

The desiccant is housed in welded vessels, which are coated and can operate up to 14.5 barg/ 210 psig (fatigue load). All dryers are standard equipped with 2 coalescing prefilters before and 1 particulate filter after the dryer. Operating costs are reduced to the absolute minimum thanks to PDP control, regeneration & cooling temperature control and compressor synchronization; which are all integrated in the Purelogic™ controller. Zero Purge variants are equipped with a purge back-up mode which switches the dryer to purge cooling mode in case PDP could not be met at ambient conditions outside of limitations. The Purelogic™ also ensures maximum reliability by monitoring the most important parameters of the dryer and offers impressive control and monitoring capabilities.

What makes PB blower purge desiccant dryers unique?

Purelogic™ advanced control with remote start/stop and web monitoring standard on all models
Quality butterfly and check valves with SST discs
Low kW centrifugal blower with safety alarm

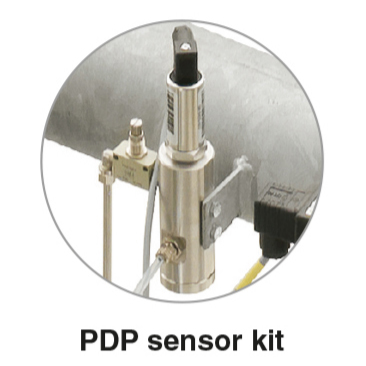

Tower switching based on real-time dew point
Galvanized piping with flanged connections

Control and Monitor Your Dryer

The Purelogic™ is the ideal complement to your desiccant dryer. This state-of-the-art control solution will provide optimal control and monitoring of your machines, increased reliability and reduced energy use. Purelogic™ is standard on PE and PB dryers, and is optional on the PH range.

• Easy to use – Purelogic™ incorporates a 3.5” high-definition color display with a multilingual user interface, clear icon indications and Ethernet connectivity.

• Control & monitoring – Purelogic™ displays & controls all parameters to ensure reliable operation of your desiccant dryer.

• Reliable – Heatless backup mode (PE/PB) and choice for auto restart after power failure.

• Safeguards production – Offers a number of alarms that gives the customer the information needed for safe operations

Features
