Next-generation GHS VSD⁺ range of variable speed driven oil-injected screw vacuum pumps with revolutionary vacuum pump control and connectivity.

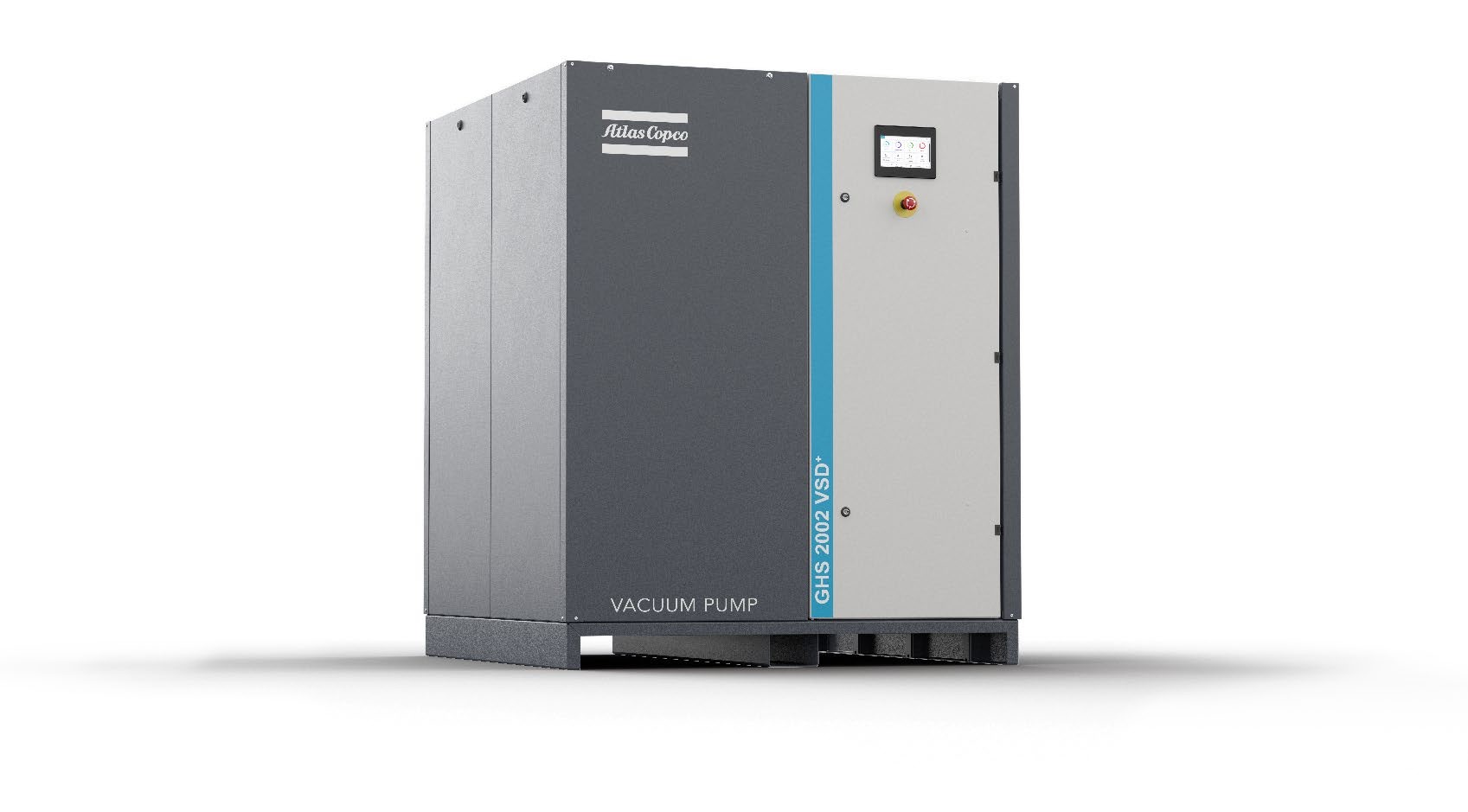

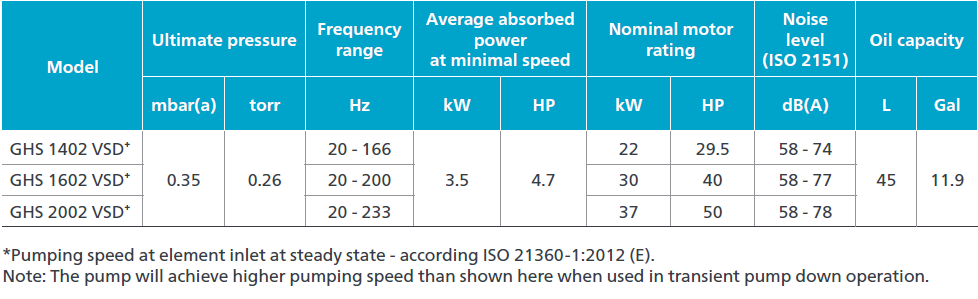

GHS VSD⁺ range of variable speed-driven oil-injected screw vacuum pumps, we’ve taken a leap ahead and raised the game. The GHS 1402-2002 VSD⁺ has a new design for better performance, optimal oil separation, a smaller footprint and an innovative new controller which puts you in gear for Industry 4.0.
Building on the revolutionary Atlas Copco GHS VSD⁺ oil-injected screw vacuum pumps, we’ve taken a leap ahead to meet the requirements for Industry 4.0. The GHS 1402-2002 VSD⁺ has a new design for better performance, optimal oil separation, a smaller footprint and an innovative new controller which puts you in gear for Industry 4.0.
The GHS 1402-2002 VSD⁺ is equipped with a permanent magnet assisted synchronous reluctance motor. This new technology ensures higher efficiency at all speeds when compared to classic motors. These new motors are oil-cooled, with oil lubricated bearings that provide optimal cooling at any speed.

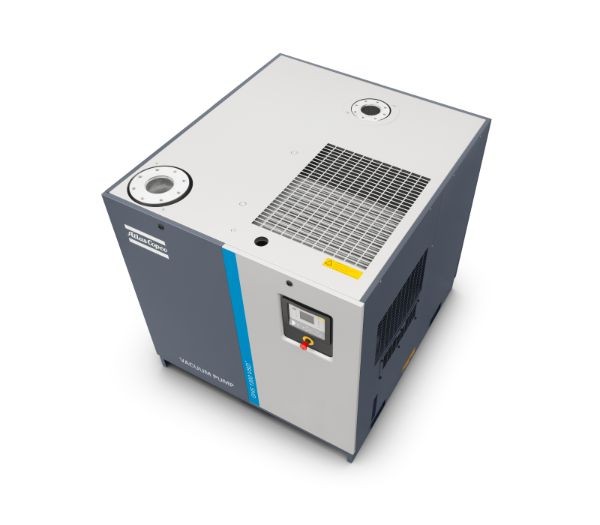

The pump boasts of a compact footprint of lesser than two square meters. thanks to the new design of the vertical drive train. The noise reducing canopy provides a significantly lower noise level for a comfortable working environment. The universal inlet and outlet flanges are located on the top of the machine. The inlet filter and inlet check valve are included with the pump.
The GHS 1402-2002 VSD+ is a plug-and-play pump that is easy to install, service and maintain. The canopy plates are easy to remove for regular maintenance and service.
High efficiency IE5 permanent magnet motor
Equipped with a permanent magnet assisted synchronous reluctance motor for high efficiencies at all speeds, contributing to the high
efficiency of the complete vacuum pump.

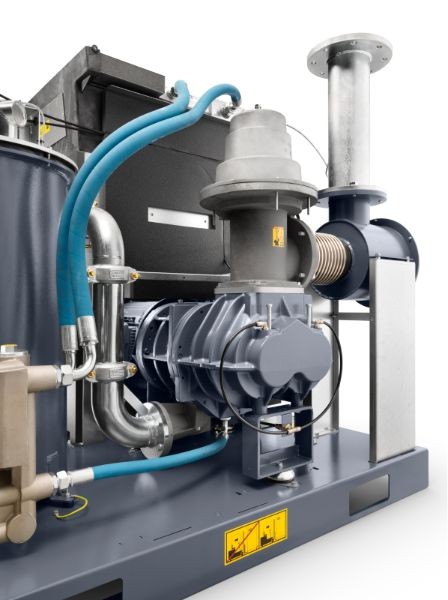

Compression optimization valves
With the innovative compression optimization valves, the oil-injected screw element has excellent flow at any rough vacuum level.
This allows for high pumping speeds, specially for rough vacuum applications.
Cyclonic oil separation
GHS 1402-2002VSD+ benefit of the latest oil separation design with additional cyclones, allowing to reach an oil carry over lower than 1.5mg/m3, twice lower than traditional oil injected pumps.
New compact design
The GHS 1402-2002 VSD+ screw vacuum pump has a smaller footprint. The footprint decreases by more than 10% than its predecessor due to the design of the vertical drive train. The small footprint comes in at 1360 mm x 1460 mm. The footprint decreases by more than 10%.
Neos Next inverter for energy savings
Equipped with Neos Next, Atlas Copco’ second-generation inverter which revolutionizes inverter performance to set new standards in energy savings, sustainability and reliability.

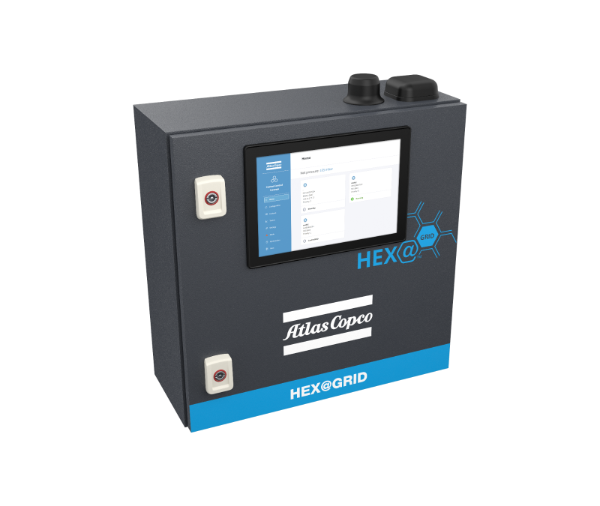

Equipped with HEX@™ – next generation vacuum control

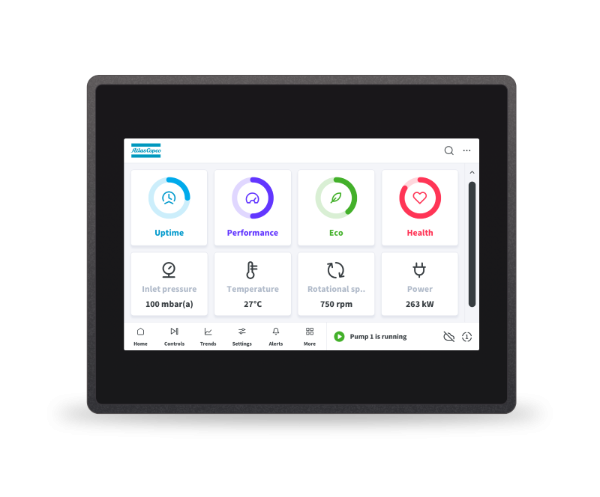

With HEX@™ you can monitor and control your pump from anywhere and at any time. You can receive feedback and review pump operating status, vacuum levels and upcoming scheduled events for your vacuum system.
.The GHS VSD⁺ series have shown a significantly better performance against traditional fixed speed technologies; potentially saving 50%* or more in energy costs.
*In most applications compared to traditional fixed speed vacuum technologies based on measurement with our Vbox energy audit tool.
VSD+ for potential energy savings of 50%* or more
In almost every production environment, the need for vacuum fluctuates depending on different factors such as process changes, the time of day, week or even month. Extensive measurements and studies of demand profiles show that there are many substantial variants with regards to vacuum demand. *In most applications compared to traditional fixed speed vacuum technologies based on measurement with our Vbox energy audit tool. Fixed Speed Vacuum Pump Energy Investment Maintenance GHS VSD+ SAVINGS 50%*
Why Atlas Copco Variable Speed Drive (VSD) technology?
- Potential energy savings of 50%* or more with an extensive flow range (20-100%)
- Reduced electrical installation costs (fuse and cable size)
- Integrated HEX@™ graphic controller controls the motor speed and high efficiency frequency inverter
- Eliminates peak current penalty during start-up experienced with stop-start machines
VSD and set-point control, lead to significant energy savings. Set-point control allows you to optimize the energy you use to maintain your process vacuum level and thereby optimize your process efficiency and performance. The lowest possible flow will be delivered to match your required vacuum level or speed – nothing is wasted.
The GHS VSD⁺ is ideally suited for:
GHS VSD⁺ with HEX@TM
Clean. Silent. Energy efficient and now with HEX@™ - next generation connectivity. Our GHS VSD⁺ range of intelligent vacuum pumps with Variable Speed Drive (VSD) technology have taken a leap ahead and raised the game with HEX@™ - Atlas Copco’s new Industry 4.0 ready vacuum pump controller.
The GHS 3800-5400 VSD⁺ series is a range of connected, intelligent, oil-sealed rotary screw vacuum pumps with Variable Speed Drive (VSD) technology. Based on the well known and durable plug-andplay design principles, these vacuum pumps have been designed by vacuum engineers to deliver peak performance at your operating pressure.
- High performance against benchmarked oil-sealed and dry vacuum pump technologies for the relevant applications
- Increased efficiency – advanced screw technology, Variable Speed Drive (VSD) and innovative motor design combine to produce a leap forward in efficiency
- Quiet operation – noise level is far below that of comparable technologies
- Sustainable productivity with built-in efficiency
Reduced environmental impact due to ultra-high oil retention at all operating pressures
Ideal for diverse markets

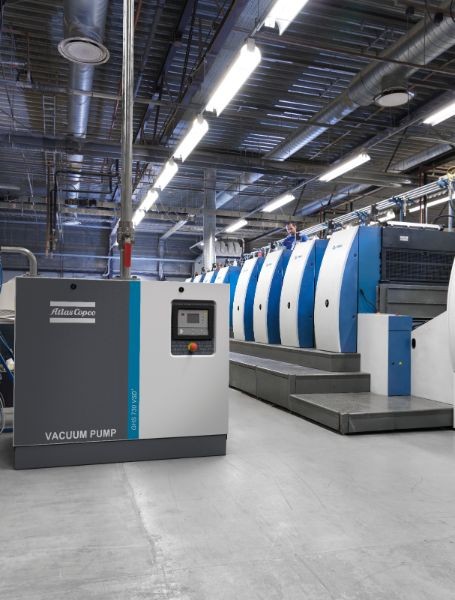

The GHS VSD+ Series vacuum pumps are ideal for a range of applications in plastics, glass, bottling, canning, wood, packaging, printing and paper, meat packaging and many more. The GHS 350-900 VSD+ is an optimal solution when a dedicated pump is required in the production area
Low lifecycle costs
For replacement pumps, the GHS VSD+ Series offers a very low lifecycle cost (including service activities and energy). Generally the payback time against existing oil-lubricated or multiple dry vane installations will be much less than two years, considering energy consumption and maintenance costs alone, without taking into account the ease of installation.

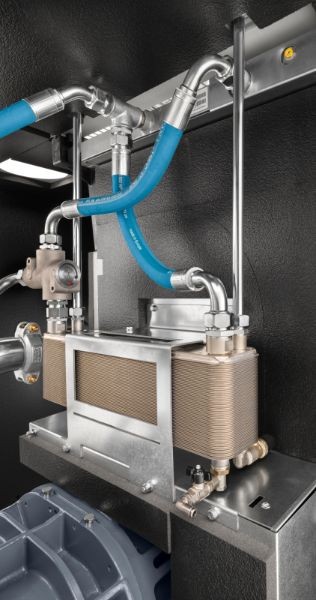

Benefits for your vacuum installation
With these vacuum pumps you can potentially save 50%* or more in energy costs. They are among the most energy-efficient oil-lubricated vacuum pumps in the market in the capacity range where some other technologies (e.g. oil-sealed vane and fixed speed OIS) start to become mechanically inefficient and expensive in terms of capital expenditure.
Easy and fast installation saves time
Optimized working surroundings
In addition, the GHS VSD+ series offers a low noise level when compared to other vacuum pumps in the market today. Its superior oil retention also means that the quality of the exhausted air is optimal and oil spills on the factory floor are avoided. The end result is a significantly cleaner working environment
Guaranteed uptime and low costs
The GHS VSD+ series is designed for easy and infrequent maintenance:
Mean Time Between Maintenance (MTBM) rates are long
No water is needed, and HEX@™ is available to keep you informed of pump performance and maintenance requirements
The oil separator is designed for highly efficient oil coalescing with ultra-low back pressure, which means less energy consumption. This contributes to a long oil separator life that is double that of a comparable oil-sealed vane vacuum pump. Another contribution to oil separator life is the patented design which never allows the filtration media to be overloaded, so they last much longer. This is great news for your maintenance budget.
VSD and set-point control – not normally features of vacuum pumps – lead to significant energy savings. Set-point control allows you to optimize the energy you use to maintain your process vacuum level and thereby optimize your process efficiency and performance. The lowest possible flow will be delivered to match your required vacuum level or speed – nothing is wasted!
Sixth sense intelligence - HEX@TM
With HEX@™, you can monitor and control your pump from anywhere and at any time. You can receive feedback and review pump operating status, vacuum levels and upcoming scheduled events for your vacuum system
Automated insights and updates
HEX@™ offers the benefits of having a connected device such as automatic software updates, access to future released functionality and increased understanding into vacuum performance. HEX@™ will also provide insights, recommendations and feedback based on pump performance both current and historical. Perhaps the energy efficiency of the vacuum pump can be improved, or your maintenance interval can be extended? HEX@™ will empower you to take proactive steps to optimize your vacuum system and maximize your production.
