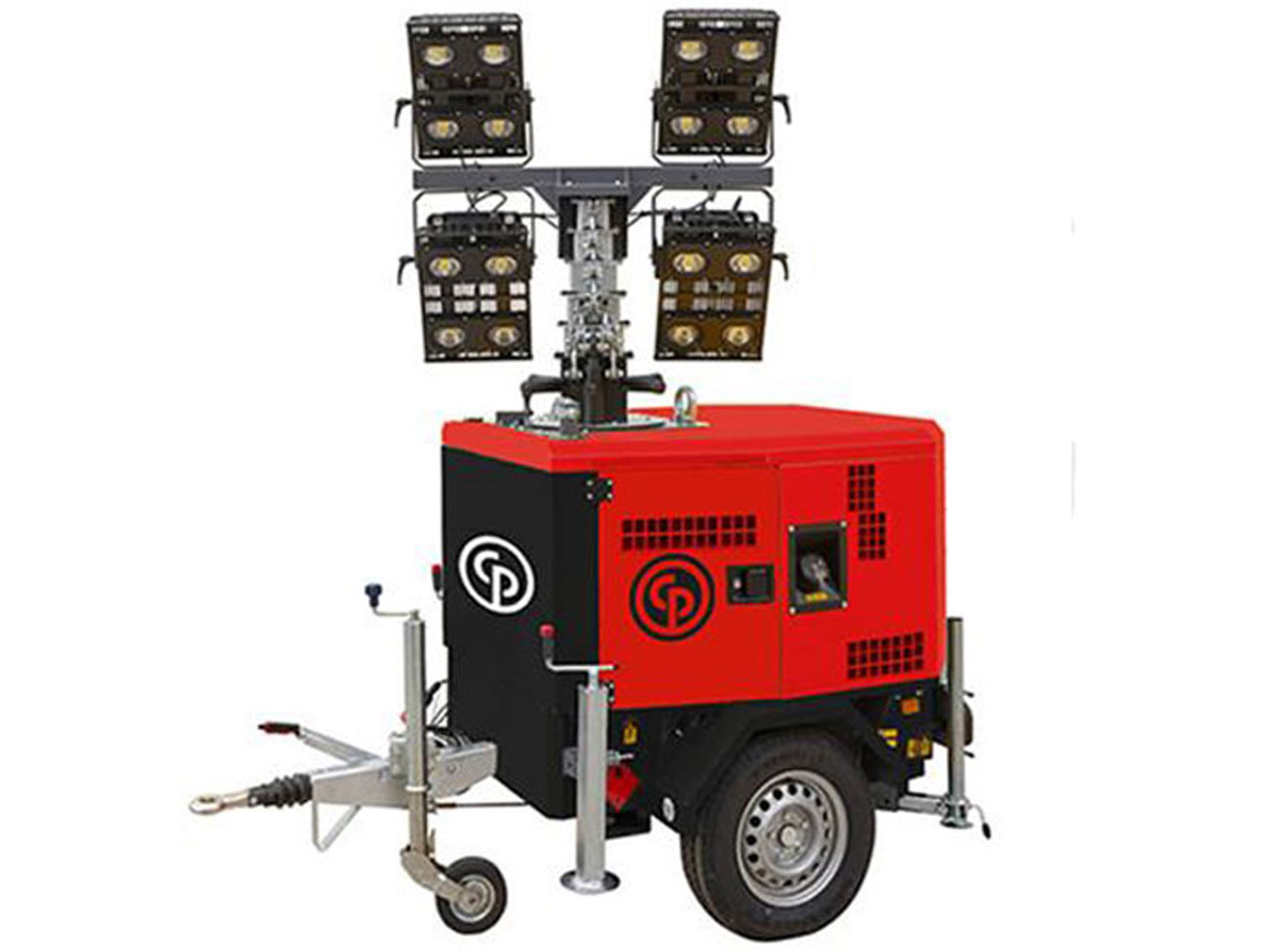

Make the more efficient choice - Chicago Pneumatic CPLT H6 LED Light Tower

THE CPLT H6 IS ONE OF THE MOST EFFICIENT LIGHT TOWERS ON THE MARKET TODAY.

Equipped with wheels and featuring high-efficiency LED lamps with specially-designed optics to maximise light coverage and brightness, the new CPLT H6LED offers greater luminosity and improved transportability with the goal of reducing overall operational costs. The combination of efficiency, toughness and portability ensures that the new models can meet the demands of applications including construction sites, events, rental and oil and gas.

The CPLT H6 LED is equipped with four 350W high-efficiency LED lamps, which are equivalent to four 1,000W metal halide lamps. The effect is to maximise coverage up to 5,000sqm, while reducing fuel consumption by up to 70 per cent. Longer refuelling intervals are enabled by a 130-litre fuel tank that supports run times of up to 185 hours.

The stamina of the light tower is enhanced by IP67 protection of its LED lamps, which offer up to 30,000 hours of life before replacements are required. An optional Lc1003 digital controller provides mast and photocell control and enables alerts to indicate any incidence of low oil pressure, high temperature or engine problems, which can help reduce operational and maintenance costs.

The CPLT H6 LED features a galvanized hydraulic seven-metre mast, plus four heavy-duty stabilisers, to ensure reliability and operator safety. Both of these are essential in the challenging conditions in which light towers are likely to operate.



Applications

The CPLT H6 is one of the most efficient light towers in the market today, lighting up the night while saving fuel, emissions and maintenance costs. It's compact and efficient, so it's easy to store and transport. The CPLB 6 is also designed to withstand harsh conditions of construction and road works.

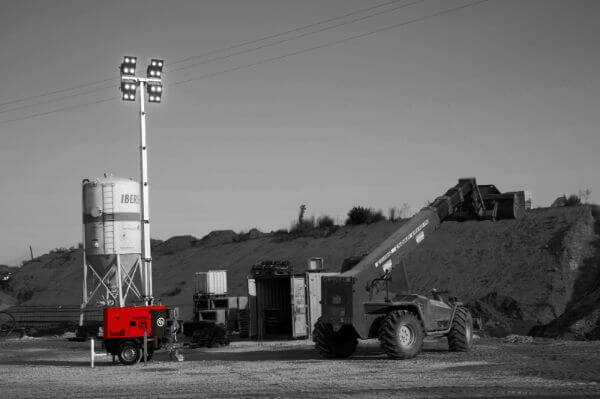

Efficient Light on the Job Site

UP TO 95% LOWER OPERATING COSTS*

The light tower can be turned on and off automatically with the optional photocell or weekly timer — no need to send personnel to the worksite.

UP TO 34% LOWER MAINTENANCE COSTS*

Reliable, quality components help extend the life of your light tower. The CPLT 6 offers an extended 500-hour service interval.



UP TO 75% LOWER EMISSIONS*

Efficient design reduces CO2 emissions compared to the traditional light tower design.


UP TO 71% LOWER FUEL CONSUMPTION*

The compact 1,500 rpm engine uses up to three times less fuel than a traditional light tower.

EXCELLENT LIGHT COVERAGE

Four high-efficiency 350 W LED floodlights with special optics deliver luminosity equal to four standard 1,000 W metal halide lights.


LIGHT WHERE YOU NEED IT

The galvanized hydraulic vertical mast extends quickly to a height of 8 m (26.2 ft) and rotates 340˚

DURABLE CONSTRUCTION

Galvanized steel canopy resists rust and corrosion, and the spillage-free frame contains fluids within the frame. Doors open wide for easy service access.

EXTENDED RUNTIME

Large fuel tank provides 260 hours of runtime between refueling.





Features

  • Same luminosity as a 4,000 W metal halide light tower with up to 71% less fuel
  • The compact 1,500 rpm engine uses up to three times less fuel than a traditional light tower
  • Can be turned on and off automatically with the optional photocell or weekly timer - no need to send someone to the site.
  • High-quality components contribute to 500 hours of an extended service interval
  • Reduced CO2 emissions compared to the traditional light tower design
  • The Lc 1003 controller is specifically designed for light towers. It includes an event log, a weekly scheduler and remote start control.
