WISAIR 40 - 75 Oil-Free Screw Compressor - Fixed Speed Version

KO48Z7JUJA
Ask a Question Download Brochure
  • Overview
  • Specifications

WISAIR 40V - 75V Oil-Free Screw Compressor -  Fixed Speed Version


WIS 40 - 75 oil-free compressors provide high-quality compressed air for a range of industrial applications for industries such as pharmaceuticals, food and beverage, electronics and textiles. These industries cannot risk any chance of oil contamination in their processes, therefore it is essential that the compressed air is 100% oil-free. The standard is ISO 8573-1 (2010) certification, in which Class Zero represents the highest air purity. It is the only way to ensure oil-free air for your critical processes and with it peace of mind.
Outstanding reliability, low maintenance and operating costs make our oil-free compressors a sound investment.




Our range is built focussing on three pillars


Ultimate 100% oil free, clean air




The most energy efficient compression due to low air discharge temperatures, optimised rotor profiles and no bearing losses



Ultimate reliability due to friction free hyrodynamic bearings lubricated by clean, filtered lubricant, durable materials to reduce corrosion risk, and reduced rotor stresses due to soft start up process

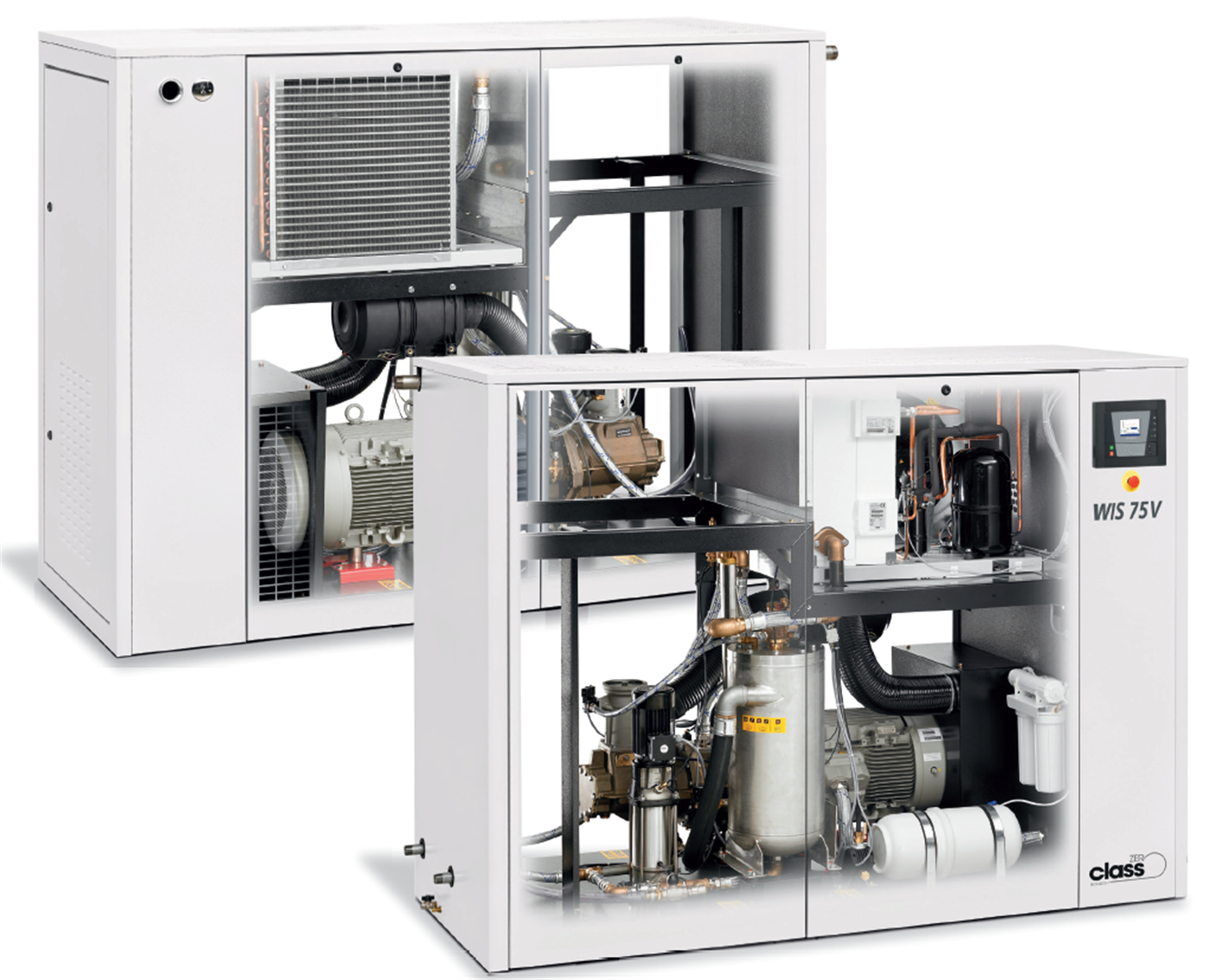

One package - multiple benefits

These innovation features of WIS 40-75V range provide you with maximised efficiency, excellent air quality and low noise levels.

Direct drive set

IP55 induction motor directly coupled to the air end, no long-term losses, direct drive train for optimum efficiency; flexible to meet pressure/flow requirement

In-house design element

with corrosion-proof parts and hydrodynamic bearings

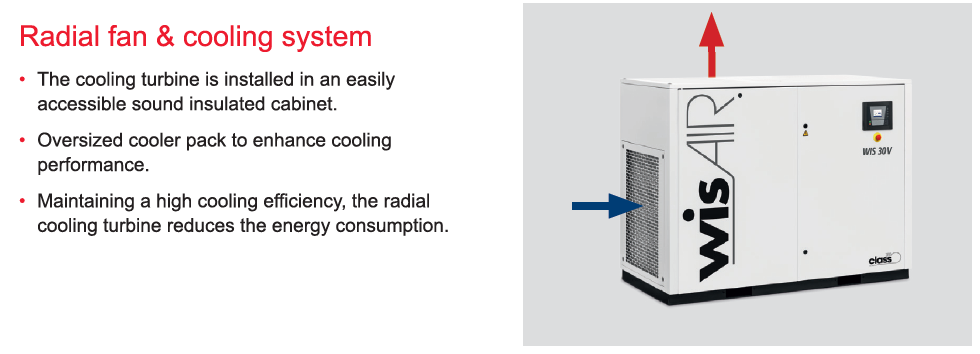

Radial fan and cooling system

cooling turbine is installed in an easily accessible sound insulated cabinet, oversized cooler pack to enhance cooling performance, maintaining a high cooling efficiency, the radial cooling turbine reduces the energy consumption

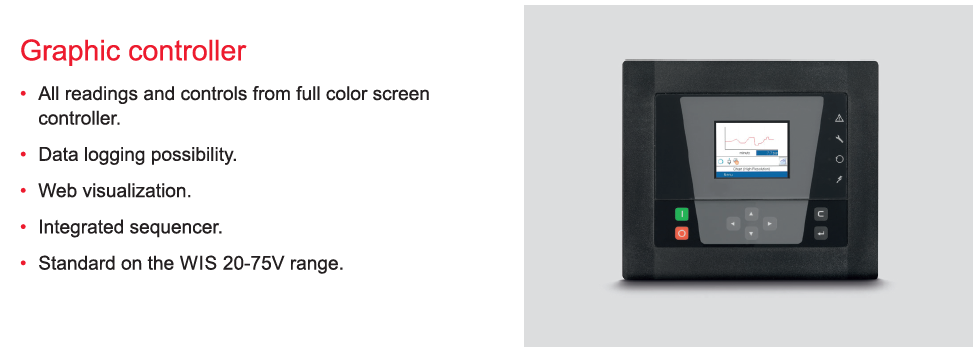

Graphic controller

all readings and controls from full colour sceen controller, data logging possibility, web visualisation, integrated sequencer; standard on the WIS 20-75V range

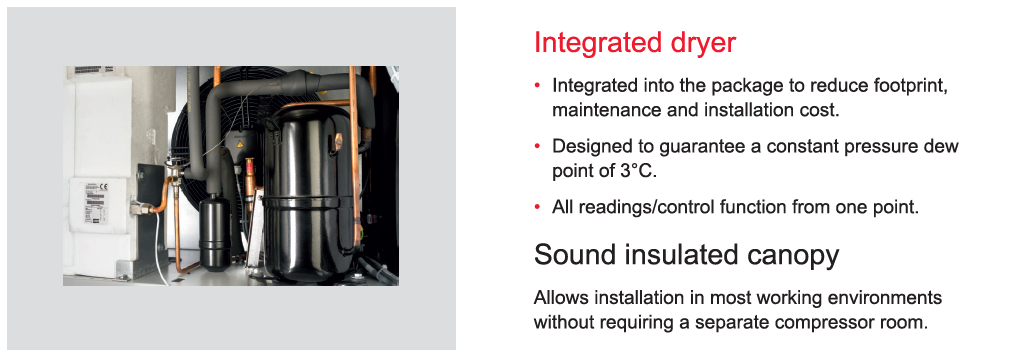

Integrated dryer

to reduce footprint, maintenance and installation cost, designed to guarantee a contant pressure dew point of 3 degrees celsius, all readings/ control function from one point
