Dry Rotary Vane Vacuum Pumps

Introducing our new range of single-stage oil-free rotary vane vacuum pumps which ensures a clean operation, free of emissions and no contamination to the process.


  help @ashair.co.nz

The new Atlas Copco DVS series dry vane vacuum pumps

These dry rotary vane vacuum pumps are designed to be robust, simple, clean, compact, and silent suited for rough industrial applications with high efficiency and competitive initial investment costs.


Talk to our team today about dry rotary vane vacuum pumps Talk to our team today about dry rotary vane vacuum pumps

The Ash Air range of quality dry rotary vane pumps do not use lubrication and can be operated continuously at absolute pressure above 400 mbar. The DVP rotary pump is widely used in a number of applications including printing, holding and lifting.

These durable, hard-working rotary vane pumps can work in vacuum and compressor mode depending on the configuration and being oil-free means there is no oil carryover, with the added advantage of a rotary pump that can work continuously at pressure range 120 - 1000 mbar.

At Ash Air we pride ourselves on supplying quality, reliable rotary vane pumps to our customers, with industry-leading servicing and spare parts for all brands. We offer 24/7 nationwide support with experienced engineers on hand to help when and where you need it.

Atlas Copco DVS Dry Rotary Vane Vacuum Pumps | DVS 5-140

Atlas Copco DVS Dry Rotary Vane Vacuum Pumps | DVS 5-140

Product Enquiry Product Enquiry

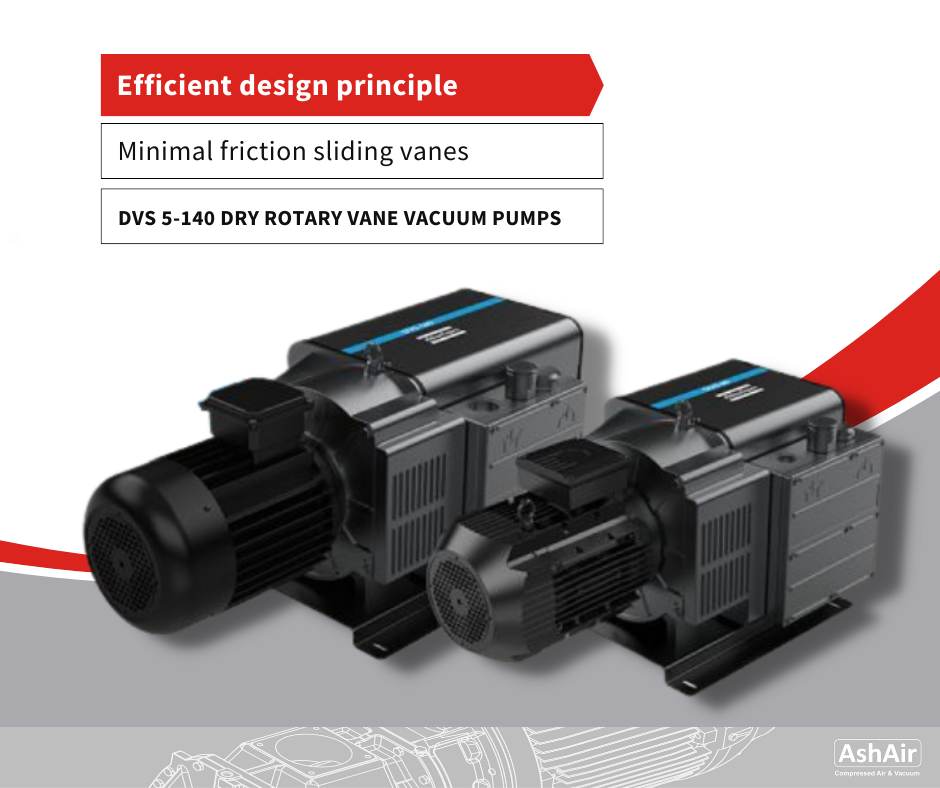

Introducing the new DVS series of dry vane vacuum pumps by Atlas Copco, offered by Ash Air


The core of these pumps features a rotor with grooves where highly resistant graphite vanes are inserted. The centrifugal force ensures continuous contact between the vanes and the body, maintaining stable and consistent vacuum levels during operation. Standard features of the DVS series include an internal inlet filter, a non-return valve, an exhaust silencer, a noise-containment canopy (from DVS 16-140), and an energy-efficient IE3 electric motor (from DVS 16-140).

The DVS dry rotary vane vacuum pumps are available with nominal suction flow rates ranging from 5 m3/h to 140 m3/h and ultimate vacuum levels of up to 120-150 mbar(a). For higher flow requirements, we recommend exploring our DZS series of dry claw vacuum pumps and systems.

The DVS dry rotary vane vacuum pump is ideally suited for:

  • Packaging
  • CNC clamping
  • Pneumatic conveying
  • Medical systems
  • Laboratory vacuum
  • Printing
  • Pick and place
  • Holding, lifting, moving
  • Woodworking

DVS Dry Rotary Vane Vacuum Pumps DVS 5-140

Introducing our new range of single-stage oil-free rotary vane vacuum pumps which ensures a clean operation, free of emissions and no contamination to the process.

We are pleased to unveil our latest line of oil-free dry rotary vane vacuum pumps – the DVS series. These positive displacement vacuum pumps offer a clean operational environment, free from emissions and contamination to the process. Engineered to be robust, straightforward, clean, compact, and quiet, they are ideally suited for demanding industrial applications, offering high efficiency and competitive initial investment costs.

Clean and oil-free

The DVS series ensures a clean operation free of emissions and no contamination to the process.

Robust construction materials

Highly resistant graphite vanes help achieve maximum durability with minimal wear and tear leading to easy maintenance.

Efficient design principle

The oil-free, minimal friction sliding vanes design feature leads maximize vacuum levels and lower overall lifecycle costs.

Suited to a wide range of industries

With its low noise level and small footprint, the DVS series dry rotary vane vacuum pumps are suited for rough industrial applications.

Ease of maintenance

Long mean time between maintenance and ease of service due to the modular design and simple, efficient pump mechanism design.

Simple and reliable technology

Positive-displacement, air-cooled and direct-driven vacuum pumps built for oil-free vacuum operation.

.
